Tangerine Automation Interface

TANGERINE AUTOMATION INTERFACE FOR GML

NOW AVAILABLE!

Following in the steps of our flagship Automation Interface for SSL and Flying Faders, the Tangerine Automation Interface for GML Automation brings the same powerful and intuitive workflow to the GML platform with modern DAW-controlled automation.

THE TANGERINE AUTOMATION INTERFACE IS A MODULAR SYSTEM CUSTOMIZABLE TO YOUR UNIQUE CONSOLE

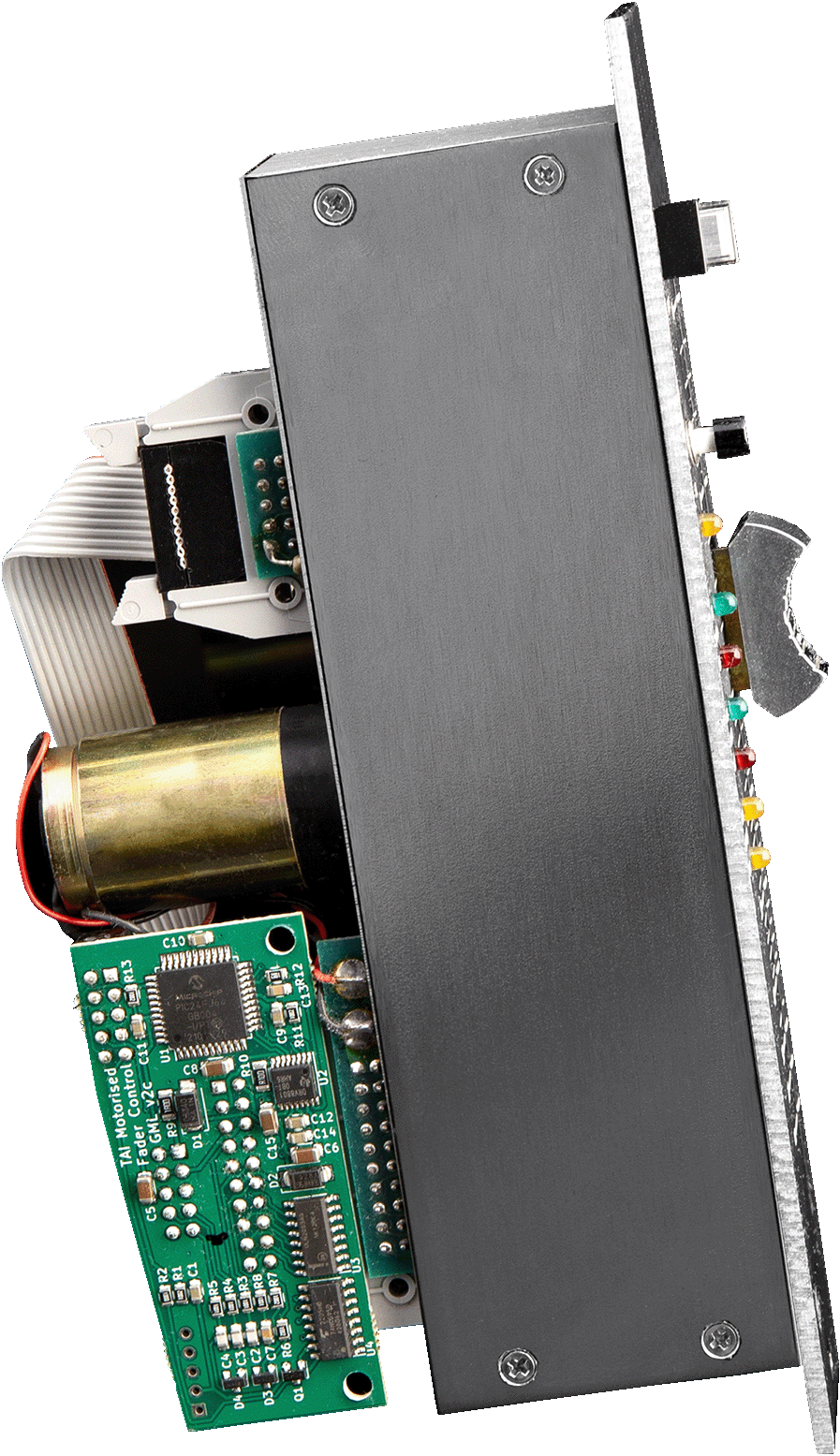

The Tangerine Automation Interface for GML Automation is directly built-in to the console without any additional hardware. Each bank of 8 GML faders recieves an automation motherboard that connects to 8 Tangerine Fader Controllers. These controllers plug directly into the GML faders. Up to 12+ motherboards can be daisy-chained using RJ45 cables. This system replaces all existing GML automation cables and hardware, keeping only the high-quality faders and greatly improving system reliability. The interface reuses the existing +12V GML power supply when functional and reliable. A single USB cable connects the console to your audio workstation.


Transfer mixes between consoles

Like all our world class interfaces, seamless integration with our state-of-the-art Injektor software and plug-in suite comes standard. Never before could a single mix session cross multiple automation systems. Track your drums on a Flying Faders console in Berlin, finish your vocals on an SSL in London, and then mix on one of the 7 remaining legendary Focusrite console with GML automation; a single Pro Tools session carrying both audio and automation data seamlessly transitions your fader moves and mutes to any Injektor compatible studio, on any console.

Simple and Efficient

Completely silent and totally fanless, the Tangerine Automation Interface for GML Automation greatly reduces the cost of maintenance of your console. Gone are the days of having to remove faders and fiddle endlessly with TRIM pots to calibrate your automation levels. With the Tangerine system, all calibration is digital and stored on each individual fader controller. Routine calibration can be completed in under 5 minutes, without ever removing a fader.

Flexible Workflows

The Tangerine Automation Interface offers multiple automation workflows :

  • In INJEKTOR workflow, the TAI brings direct READ/WRITE/TOUCH/TRIM automation of faders and mutes directly in a AAX/AU/VST compatible DAW.
  • In HUI workflow, the TAI controls DAW virtual faders directly using your consoles's faders as input controllers.

OPTIONS

Replacement 12V Power Supply

Is your original 12V automation PSU broken? Maybe was it never provided with your console? Maybe are you sick of your power supply doubling as a space heater? We've got you covered! Our state-of-the art switching power supply replaces the existing GML 12V supply rail for high-efficiency, cool and quiet operation.

SPECIFICATIONS AND FEATURES

Automation

  • 8 to 96 channels of GML automation, configured to match channel count
  • Use your DAW as the automation software. Available workflows:
    1. INJEKTOR (AAX/AU/VST plugin)
    2. HUI*
  • READ / WRITE resolution: 10 bits (1024 steps) +/- 0.1 dB precision
  • Control and automate FADERS and MUTES
  • Support for TRIM and ABSOLUTE modes
  • Enhanced fader level match (to match fader position in motor OFF mode)
  • Set individual channel automation modes from the faders themselves
  • Definable post-write automation mode toggle
  • Grouped automation
  • Linked automation
  • Any console fader can be used as a virtual DAW controller

Console Features

  • Control console mutes and solos
  • Create and control groups and links
  • Create and load Mix Scenes
  • Define channels for solo-safe

Testing & Maintenance Features

  • Motor Test, with 5 patterns
  • LED Test, with 3 patterns
  • Switch Test
  • Built in auto-shut off protection for motor tests

Hardware specifications

The TAI for GML installs directly inside the consoles; no external chassis required. Each bank of 8 channels purchased includes:

  • 1 Tangerine Automation Motherboard (the 1st one will be a master, all others slave)
  • 8 Tangerine GML Fader Controllers
  • 8 ribbon cables
  • 1 short RJ45 cable
  • 1 power connector
  • 1 motherboard mounting hardware kit

Additionally, systems of 16 channels and above include:

  • 1 power distribution card
  • Bulk wiring and power connectors to link the power distribution to the motherboards

The system requires a functional GML + 12V power supply or the optional Tangerine Power Supply.

All lead-free, RoHS components.

Options

  • Tangerine Power Supply – if the existing GML +12V power supply is unavailable or unreliable, THD-Labs can supply a high-powered, low noise power supply to replace it

Compatibility

Injektor supports computers running:

  • macOS 10.9.5 (Mavericks) — macOS 13 (Ventura)
    Compatible with both Intel and Apple Silicon processors.
  • Windows 10 / Windows 11

TaiMothership plug-in is tested for:

  • Pro Tools 11 — Pro Tools 2024 (Rosetta currently required)
  • Logic Pro X

The HUI workflow does not require any software installation and supports any HUI compatible DAW.

* Pro Tools limits HUI workflows to a maximum of 32 simultaneous channels.

ORDER

The Tangerine Automation Interface for GML is now available!

Pricing

The Tangerine Automation Interface for GML Automation is sold in banks of 8 channels, with price varying by channel count.

For proper sizing, count the number of GML faders to automate, including group and master faders. For example, a console with 40 channels, 6 groups and 2 masters requires a 48 input TAI. A smaller system can also be purchased upfront and expanded at a later date.

Pricing starts at $ 1,200 USD

Ordering

Contact us to order the system or for more information. It will be our pleasure to assist you.

Typical delivery times are 6 — 8 weeks after receipt of a 50% deposit.

Payment

Preferred Payment Methods: wire transfer, money orders, certified cheques and Interac e-Transfer (Canada only).

Also available with a 4% surcharge: MasterCard, VISA and PayPal.

SUPPORT AND WARRANTY

The original purchaser of any Tangerine Automation Interface receives 5 years of software and firmware updates and 2 hours of complimentary installation support and product training.

If you encounter an issue with your Tangerine Automation Interface that cannot be resolved using the product manual or THD-Labs website support, please reach out to us via our contact form. We are here to assist you.

For emergency assistance, please call us at 1-866-344-0880 (ext:2).

Warranty: the Tangerine Automation Interface for GML is covered against material and craftsmanship defects by our 1-year hardware warranty.

FAQ

How do I install the Tangerine Automation Interface for GML?

The Tangerine Automation Interface for GML is installed directly inside your console.

  1. Remove any existing cabling linking your GML faders to their original GML automation computer
  2. Connect a Fader Controller to each GML Fader.
  3. Connect each fader controller to it's fader motherboard using the provided ribbon cables.
  4. Daisy-chain each motherboard using the provided RJ45 cables.
  5. Connect the USB port on the master motherboard to your computer.
  6. Download and install the Injektor Software Suite.

For more detailed installation and troubleshooting instructions you can refer to the Tangerine user's manual.

Which workflow is best for me ?

The Tangerine Automation Interface supports 3 dedicated workflows.  On top of all original computer functions, each workflow offers different modern approaches to automation that certain users may prefer.


  1. The Injektor workflow is our most recent - and most popular - no-compromise method for working with the TAI. Using our AAX/VST/AU plugins, you can quickly and easily control up to 96 channels directly in your favourite DAW. All available automation modes are available - including TRIM. This workflow requires installing our Injektor software package. To see the Injektor workflow in action, check out our tutorial video.
  2. Available only on the TAI for SSL E/G, the REAPER workflow was developed to match the feel of the original SSL computer. In this workflow, Reaper directly replaces the existing SSL computer and will be “Synched/Slaved” via time code to your audio source and can control up to 96 channels. This is the preferred workflow when controlling automation from a tape deck directly from the SSL centre section without having to manipulate a DAW.
  3. The HUI workflows turn your console into a control surface that interacts with HUI compatible DAWs without any additional software required. Though HUI workflows don't require any additional software, they do have some tradeoffs compared to other workflows. The HUI OTB workflow is limited to 32 channels and does not support TRIM automation modes. The HUI Hybrid workflow can support up to 96 channels by using bank switching and supports TRIM automation modes, but it does not have unity-gain coming out of the DAW.

How do I configure my interface and my DAW software ?

Initial set-up of your Tangerine Automation Interface is quick and easy.

After connecting your TAI to the console and to USB, install our Injektor software suite. Using Injektor's setup tab, you can choose your desired workflow and other comfort settings.

Depending on your chosen workflow, you may need to install additional software packages:

  • The Injektor workflow does not require any additional software.
  • The Reaper/SSL workflow requires the Reaper DAW and our driver/skin package.
  • The HUI workflows do not require any additional software.

All that's left afterwards is setting certain settings inside your DAW (this only needs to be done once). Each DAW has its particularities and configuration steps vary by workflow. Complete information for each DAW and workflow is available in the Tangerine user's manual.

How do I use the Tangerine Automation Interface ?

Fader moves and mute switch toggles are sent from your console to your DAW according to the selected automation mode. You can select the automation mode by pressing switches on your console or using onscreen controls.

Within the DAW, volume and mute information will be written to or read from track automation envelopes. How the DAW and console respond to this envelope is dependent on the choice of workflow:

  • When using the Injektor and Reaper workflows, volume and mute information is sent to the console. Normalize the DAW to 0 dB on each channel and the console takes care of volume changes.
  • When using the HUI workflow, volume information controls the DAW's fader volumes and mutes. On audio-in-fader consoles, summing is done in-the-box. On consoles with VCAs, summing can be done on the console; the TAI normalizes VCAs to 0dB and the DAW sends post-fader audio to the console.

What Automation Modes does the Tangerine Support ?

Available automation modes depends on the workflow you're using.

The Injektor, Reaper/SSL and HUI-Hybrid workflows support all available automation modes: OFF, READ, WRITE, LATCH, TRIM WRITE, TRIM LATCH, TRIM READ.

The HUI-OTB workflow does not support TRIM modes. It only supports: OFF, READ, WRITE, LATCH.
